Bind Qrcode&IMEI

Log in to the test page on your computer and use a handheld barcode scanner to identify the cabinet QR code (SN) and 4G module QR code (IMEI) for binding.

Qrcode Formats

Machine（User-definable formats）

Scan code content -> https://s.dudubox.com/sw/app/r/scan.html?id=11843004

4G Meige module (single chip solution)

Scan code content -> M322M16EHD091207300 864601068540525

4G Quectel module (single chip solution)

Scan code content -> 867869060318599;MPY23F23F000398

4G Quectel module (Android onboard solution)

Scan code content -> 865860049546212;MPA19H901029303;A10000671D98A3

4G Quectel module (Android integrated solution)

Scan code content -> 867329046761123;MPY23IF1S000918;B00C9D8B0098;A1000074BE075A

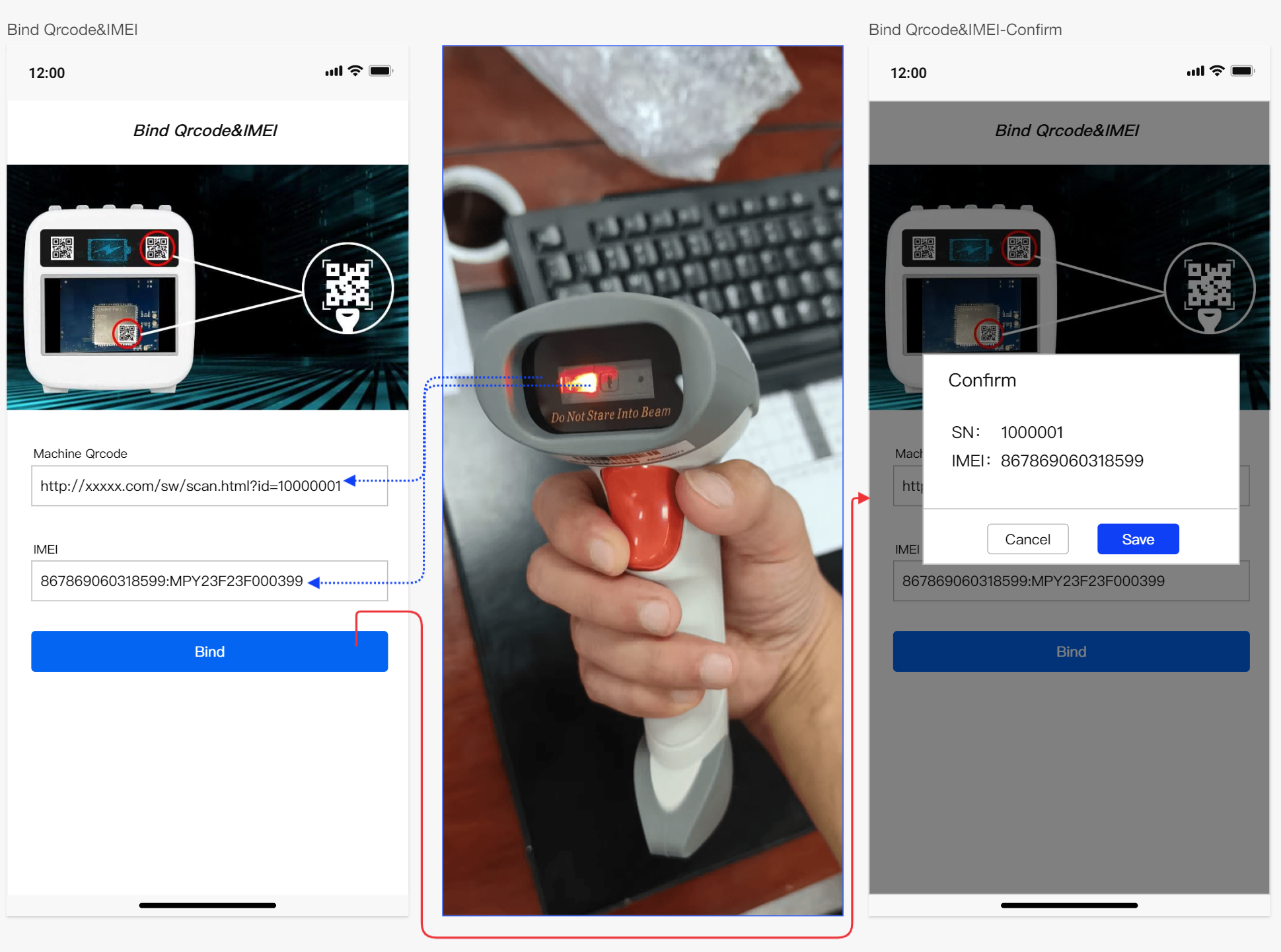

Scan And Bind Qrcode

• Production staff use a barcode scanner to scan the cabinet QR code SN and the 4G module QR code IMEI for binding.

IMEI Regular Extraction

Module	Qrcode Content
4G Meige module (single chip solution)	M322M16EHD091207300 864601068540525
4G Quectel module (single chip solution)	867869060318599;MPY23F23F000398
4G Quectel module (Android onboard solution)	865860049546212;MPA19H901029303;A10000671D98A3
4G Quectel module (Android integrated solution)	867329046761123;MPY23IF1S000918;B00C9D8B0098;A1000074BE075A

Demo Code：

const regx = /\d{15}/;
const imei = "M322M16EHD091207300 864601068540525".match(regx);
if(!imei){
    console.log("not found imei");
}
else{
    console.log(imei[0]);     // log print: 864601068540525
}
