Update screen ads

1、Update data once every 1 minute after the device is turned on
2、Update data every 20 minutes in the cabinet
3、Send MQTT command to update data immediately

Image format

Support: .jpg .png .jpeg

Video format

1. Only support: .mp4 (AVC encoding)
2. Video resolution cannot be larger than the screen size: For example: video resolution->1080x1920, cannot be played normally under screen resolution->720x1280, will freeze or black screen)

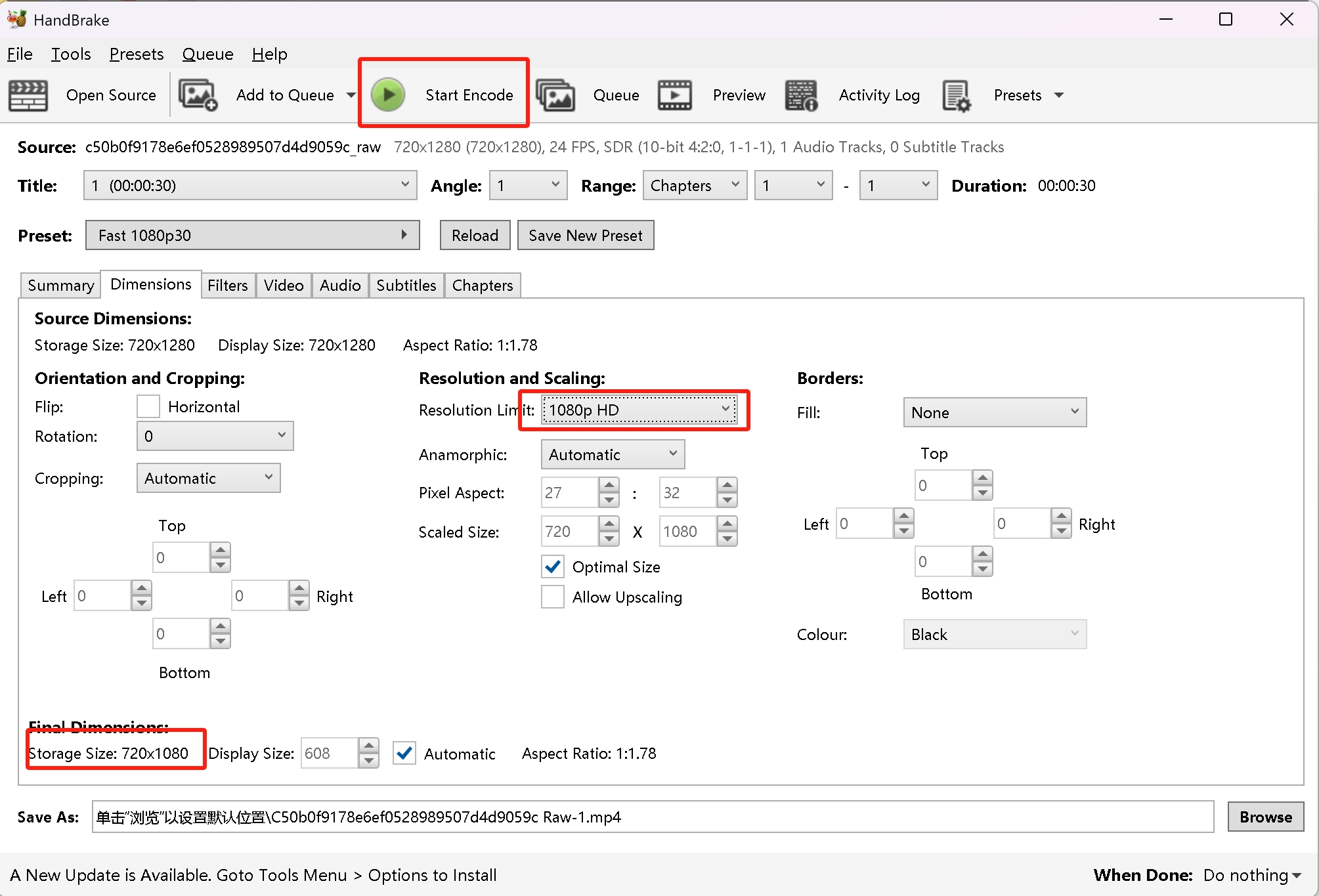

3. You can use HandBrake tool to convert format and resolution: https://github.com/HandBrake/HandBrake/releases/tag/1.9.2

Send command ▼

Subscribe to topic: /powerbank/{uuid}/user/get

Data format: JSON string

Name	Identification code	Data type	Remarks
Command name	cmd	string	load_ad

Update screen ads

{"cmd":"load_ad"}

Command Reply △

None, But Trigger API request

API request

Request URL

GET

https://{host}/api/advert/rentbox/distribute/list?uuid=%s&position=%s&sign=%s

/api/advert/rentbox/distribute/list

Request parameters

Name	Identification code	Required or not	Remarks
Server domain name	host	YES	Provided by the customer, for example: s.abc.com
Cabinet SN	uuid	YES	4G communication module, IMEI number
Signal value	position	YES	Fixed value: screen
Interface signature	sign	YES	MD5 encryption

Interface signature

sign=MD5("position={position}|uuid={uuid}")

Response result

{
    "code": 200,
    "type": 0,
    "data": [
        {
            "id": 10000704,
            "title": "",
            "fileType": 0,
            "url1": "",
            "url2": "http://sharingweb.oss-cn-shenzhen.aliyuncs.com/images/325555ec3dcfbe4f640cc910a003a6af.mp4",  // 视频地址
            "playTime": 5,
            "weight": 0,
            "screenBrightness": 255
        },
        {
            "id": 10000702,
            "title": "",
            "fileType": 0,
            "url1": "",
            "url2": "http://sharingweb.oss-cn-shenzhen.aliyuncs.com/images/baebc5a5ce6e7a19ed8b4d0613b0a989.jpg",   // 图片地址
            "playTime": 5,
            "weight": 0,
            "screenBrightness": 255
        },
        {
            "id": 10000701,
            "title": "",
            "fileType": 0,
            "url1": "",
            "url2": "http://sharingweb.oss-cn-shenzhen.aliyuncs.com/images/190bb74bd230b0c6f37f706a70629757.jpg",   // 图片地址
            "playTime": 5,
            "weight": 0,
            "screenBrightness": 255
        }
    ],
    "msg": "OK",
    "time": 1716948821872
}

Name	Identification code	Type	Remarks
Status code	code	int	Default: 200
Status type	type	int	Default: 0
Custom data	data	json_array	Default: []
Exception message	msg	string	Default: OK
Timestamp	time	long	Current millisecond timestamp

Name	Identification code	Type	Remarks
Number	id	int	Guaranteed unique
Ad title	title	string	Default: ""
File type	fileType	int	1 picture 2 video
Horizontal screen ad address	url1	string	Default: ""
Vertical screen ad address	url2	string	Default: ""
Play time	playTime	int	Only valid for pictures, set the screen stay time
Media volume	weight	int	The larger the value, the higher the sorting
Screen brightness	screenBrightness	int	Range: 0-255
